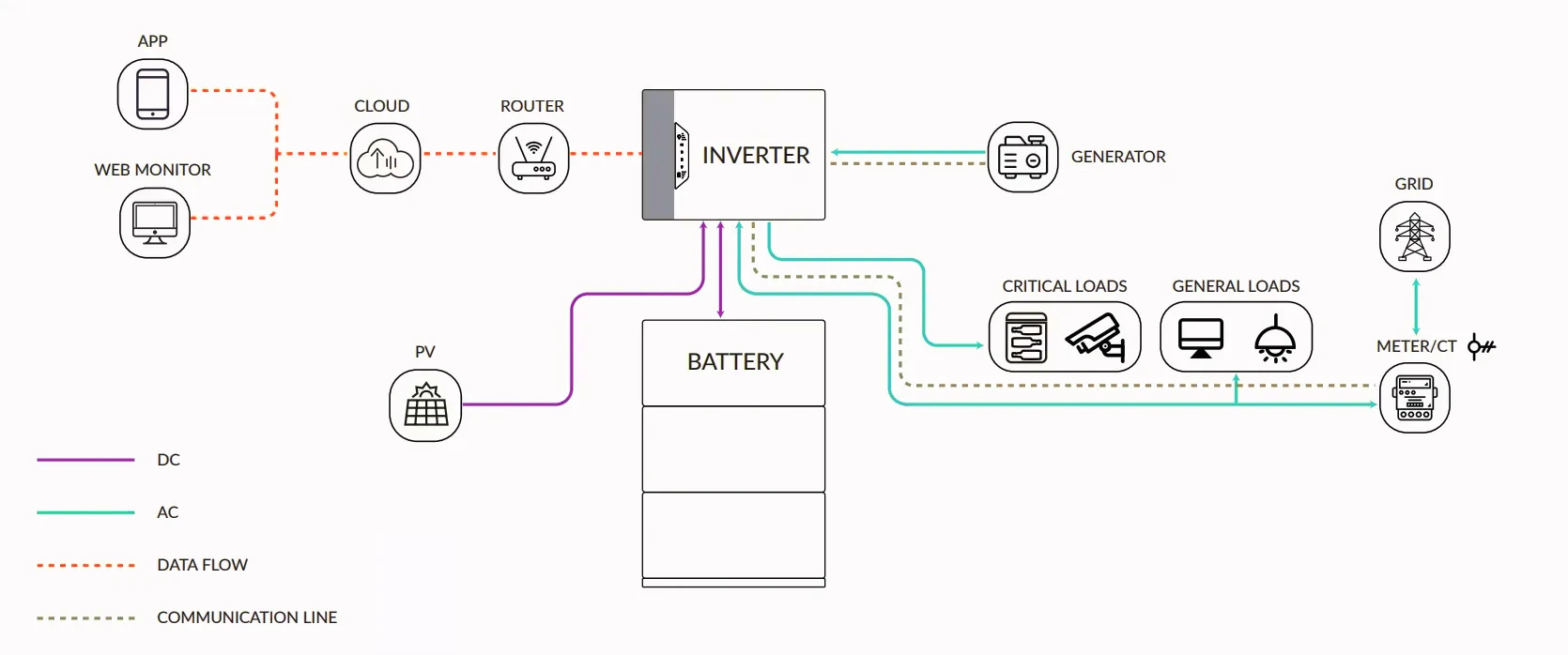

Application Scenarios of the Energy Storage System (ESS):
Residential Users: Maximize the use of solar energy and reduce electricity costs.
Small to Medium-Sized Businesses: Optimize energy management, improve efficiency, and lower operational expenses.
Off-Grid Applications: Ensure stable and reliable power supply in remote or unstable grid areas.
Free customized battery sizes and solutions
| Parameter | Model CX-51.2-280 | Model CX-51.2-314 |
|---|---|---|
| Product Model | CX-51.2-280 | CX-51.2-314 |
| Product Specification | 51.2V 280AH | 51.2V 314AH |
| Nominal Voltage | 51.2V | |
| Nominal Capacity | 280AH | 314AH |
| Total Energy | 14336 WH | 16076 WH |
| Cell Type | LiFePO4 - 280AH | LiFePO4 - 314AH |
| Maximum Cell Voltage | 3.65V | |
| Minimum Cell Voltage | 2.5V | |
| Charge Cut-off Voltage | 58.4V | |
| Discharge Cut-off Voltage | 40V | |
| Charge Temperature | 0～50℃ | |
| Discharge Temperature | -20～60℃ | |
| Communication Interface | 485 / CAN | |
| Max. Continuous Charge Current | 100A | |
| Max. Continuous Discharge Current | 200A | |
| Installation Method | Wall-mounted, Floor-standing, Stackable | |
